Spectrum stock over 6000 Instrument transformers in it's warehouse in Topsfield and 15,000 more in additional facilities across the US.
PRODUCTS
Analog Panel Meters
These high quality analog instruments are designed to measure an extensive range of electrical and electronic parameters. All instruments are available in a range of styles, sizes and specifications to meet the exacting needs of your industry.
Analog Switchboard Meters
Designed to measure amps/volts/frequency/watts/vars/power factor/synchroscope. Available in commercial/ruggedized; some are available in military specifications.
Arresters
Station Class, Porcelain Station Class, Polymer Intermediate Class, Polymer Distribution Class, Polymer Riser Pole, Polymer, 3KV TO 612KV
Capacitors
Single & 3-Phase Capacitors, 25 kVAR to 1000 kVAR, 2,400 Volts to 25,000 Volts.
50 Hz and 60 Hz, Protective – AC Rotating Capacitors, 300 & 400 kVAR, up to
4,400/8,320 volts, 2,400 Volts to 25,000 Volts. 50 Hz and 60 Hz
Digital Meters
Digital Meters are a cost effective solution for measurement and display of all major
electrical and power quality parameters. Easy programming, mounting and user-
friendly navigation make the Digital Meters an ideal choice for customers who require
reliable energy measurement.
Digital Switchboard Meters
Digital analog indicators are ideal for all applications where moving pointer
instruments are preferable to indicate trend with the simultaneous display of
a high visibility precision LED readout for increased user interface.
Power Meters
An extensive range of DIN-rail and panel mounted power meters which measure
the real consumption of active energy. These instruments are ideal for secondary metering in switchgear, plant instrumentation and process control applications.
Protector Relays
Trip relays continuously monitor and protect any electrical parameter within a set point limit. The range offers single and multi parameter units, earth leakage protection, ground fault relays, vector shift and ROCOF.
Shunts
Base mounted or bus bar mounted from 1A up to 30000 Amperes
Switches
Control Power rotary cam style switches for measuring the following: Amps, Volts, Watts, Circuit Breaker Trip Switches, Meter control, Test Switches, Lock Out relay, Synchronization, Emergency Switches, Dead stop switches

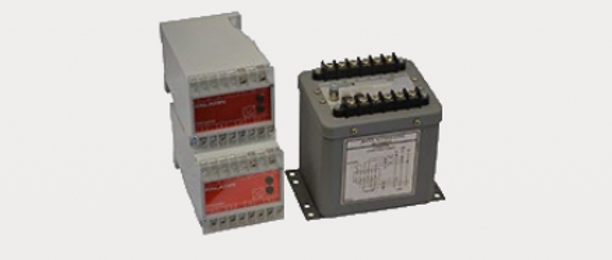

Transducers
We carry an extensive range of transducers providing measurement, isolation and
conversion of electrical parameters into industry standard DC output signals.
Breaker CT’s
CT configurations to slip around the bushing of a high-voltage transformer or
circuit breaker, which automatically centers the conductor inside the CT window.
Bushing CT’s
For use over outdoor bushings of Power Transformers, Bulk Oil Circuit Breakers
and other Dead -Tank Circuit Breakers. These transformers are used primarily for
relaying but may also be used for metering where rating allows.
CCVT’s
A capacitor voltage transformer (CVT or CCVT), is a transformer used in power
systems to step down extra high voltage signals and provide a low voltage signal,
for metering or operating a protective relay.
CTVT
Combined Instrument Transformers convert transmission class voltages & currents to lower standardized measurable values which will be used for metering, protection & control of the high voltage system.
CVT’s
Used mainly for voltage measurement by providing voltage signals to metering units,
protection relay devices, and automatic control devices. CVTs can also be used to
couple power line carrier technology to power systems for communication purposes.
SSVT’s
Station service voltage transformers (SSVTs) to provide low voltage control power for substations, cell tower installations, and at switching stations by tapping directly
from the high voltage line.
Control Power Transformers
Indoor Designs for use in Medium Voltage Switchgear, designed to produce a high level of secondary voltage stability during brief periods of overload condition.
Indoor Instrument Transformers
Wide range of transformers for measuring current and voltage. Voltage class ratings from 600V up to 36KV and current ratios up to 25000 Amperes.
Split Core Relay Class Indoor/Outdoor Current transformers
Split core CT’s for Indoor/Outdoor use with relay classes from C4 to C1600 and
ratios up to 20000:5 and larger.
Station and Distribution Class Current and Potential Transformers
CT’s and PT’s from 5KV to 72KV class, BIL from 60KV to 350KV BIL, Accuracy / RF
from 0.3B0.5, RF 3.0 to 0.3B1.8, RF 2.0/1.5, Relay class to T400, Single, Dual and Multiratio available. Custom requirements built to your specifications.
Submersible Potential Transformers
Designed to meet the severe requirements of potentially flooded areas or underground switchgear with eventual infiltration. Submersible to 10 ft / 10 days, Dead front, 2.4KV to 34.KV single or dual bushing, 0.3W, X, W,Y 1.2Z, Self extinguishing epoxy housing, explosion-proof.
